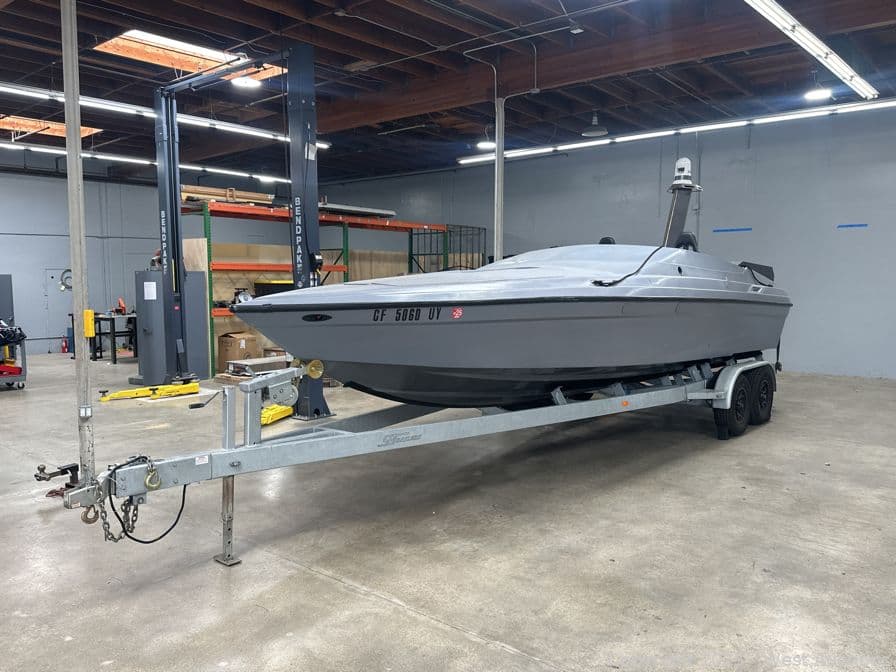

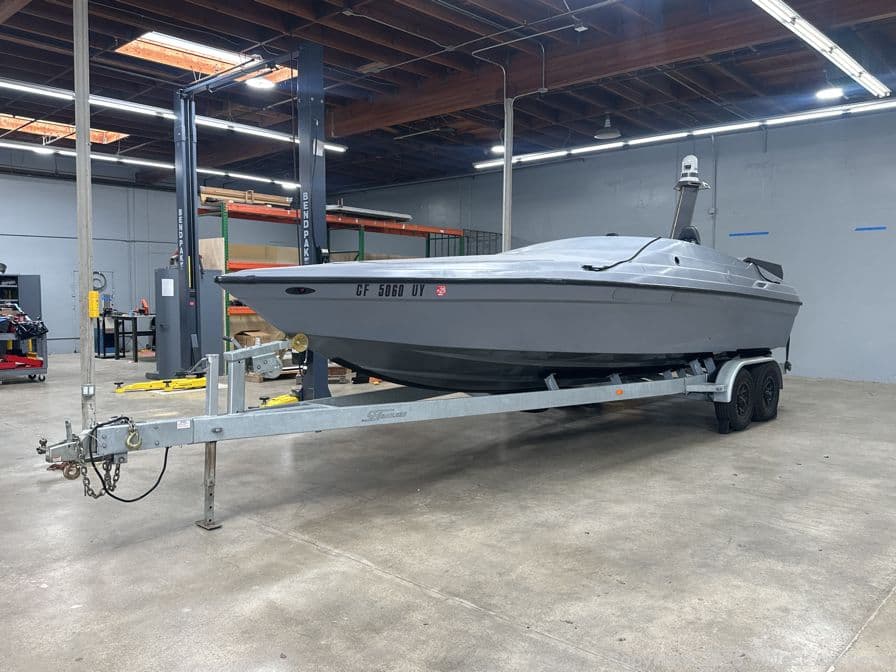

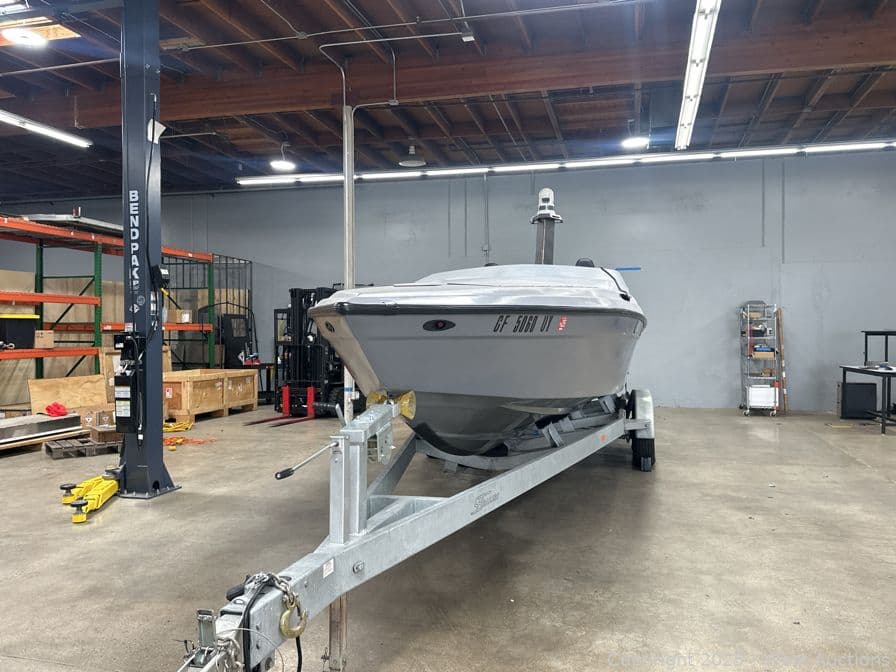

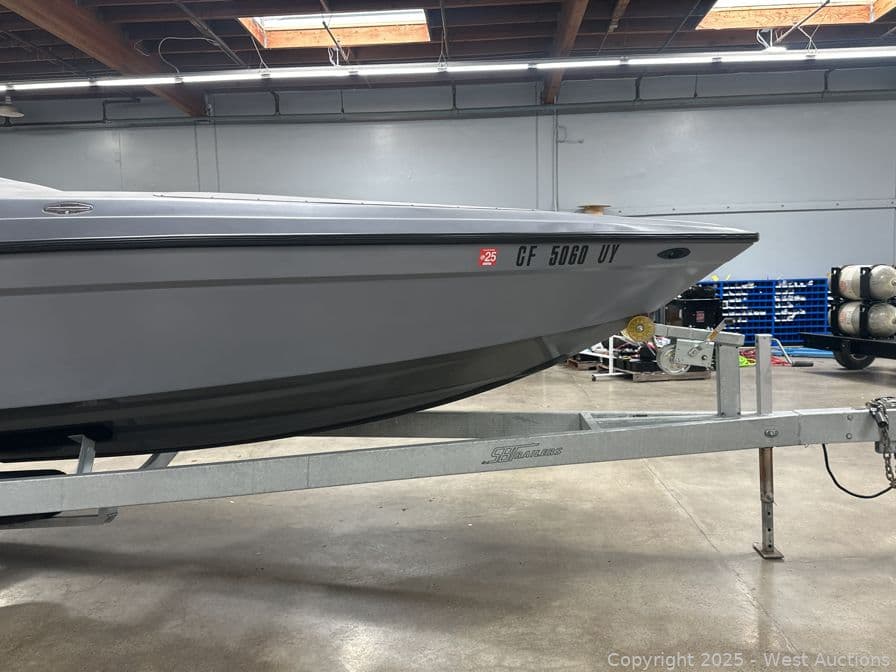

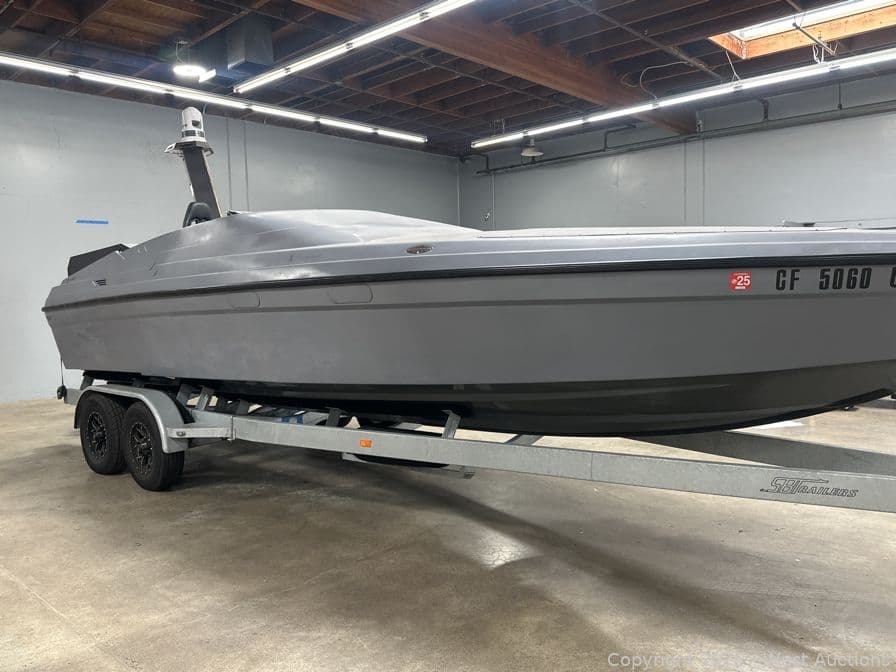

1995 Advantage Zero Emissions Industries FCV Vanguard Hydrogen Powered Speedboat with 2023 SBT Trailer

Zero Emissions Industries FCV Vanguard Hydrogen Powered Speedboat with 2023 SBT Trailer

Boat Specifications and Features

Make: Advantage
Year: 1995
Hull NO: AVI27017C595

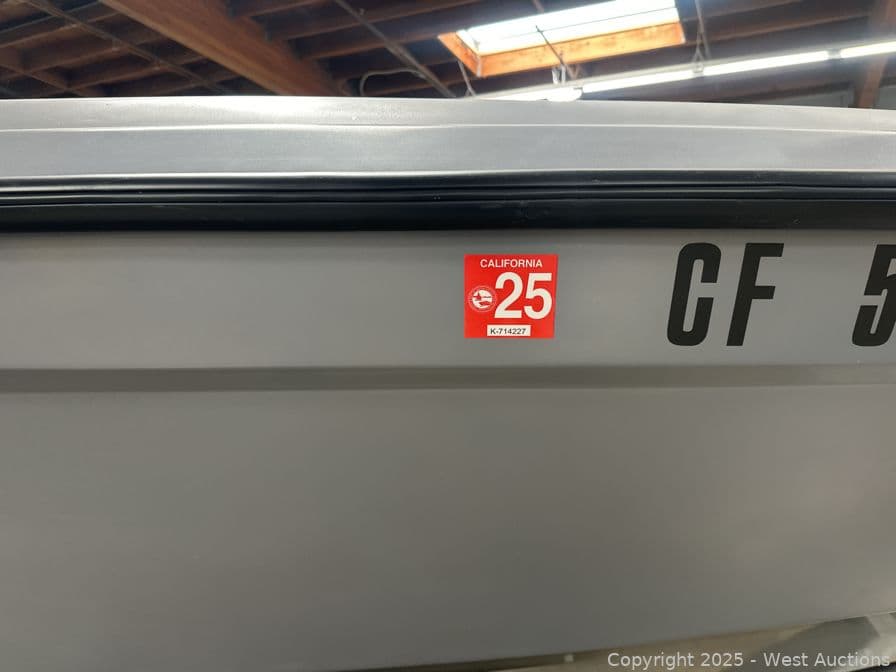

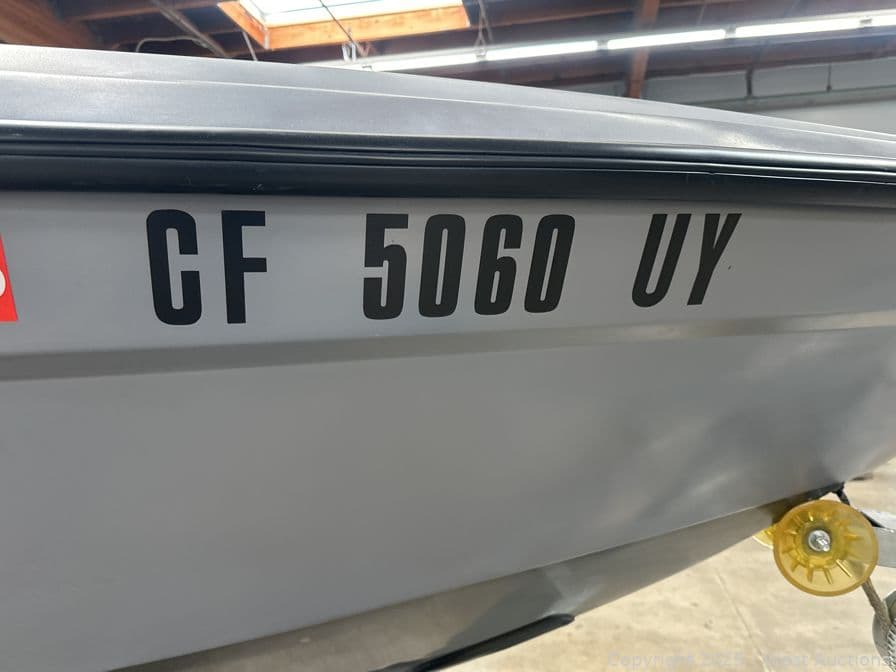

CF Number: 5060UY
- Expiration Date: 12/31/2025
Type: Speedboat
Overall Length: 330” or 27.5'
50+ mph top speed
Near-silent operation
Standard speedboat throttle and steering - drives and handles like an ordinary speedboat
Selectable auto-hybrid operation or battery-only mode
Fueled at retail hydrogen fueling stations or on location by using FTcase
Capacity for 4 passengers (2 seated, 2 standing)
Completely refurbished 1995 Advantage 27 hull (fiberglass)

Specifications and Equipment

Stern Drive: Mercury Bravo III with high efficiency contra-rotating propeller
Electric Motor: 250 kW Danfoss (+1 spare)
Fuel Cells: Twin 85 kW Hyundai “HTWO” modules in parallel (+2 spares)
Battery: 24 kWh Votari (+1 spare)
High Voltage Bus: 700 VDC, using Bel converter and inverter (+1 spare set)
Controls: Dana Novi ECU with Matlab/Simulink codebase (+1 spare)
Hydrogen Storage: Hexagon Type IV 700 bar, 9.8 kg (245 L water volume) (+3 spare)
Fueling: Standard 700 bar fueling receptacle, with J2799 comm fill protocols
Engine Type: Hybrid hydrogen fuel cell electric drive
Engine Make: ZEI
Engine Model: Z-Class
Engine Power: 335hp
Two Modes: Battery only and fuel cell hybrid
Fuel cells made by Hyundai
Battery made by Voltari
Fuel: Hydrogen stored in one 9.8kg hydrogen tank, 700 bar.

Trailer Details

Year: 2023
Make: Fabriqué Par Sport Boat Trailers
VIN: 4FBBC2721P1026081
License: 4VY6908
- Expiration Date: 10/31/2028
Gross Vehicle Weight Rating (GVWR): 10,000 Lb
Trailer Type: Boat

Trailer Dimensions

Overall Length: 29’
Overall Width: 105”

Axles, Brakes, and Tires

Suspension: Leaf Spring
Number of Axles: 2
Brake Type: Electric
Number of Wheels: 4
Tire Size: ST225/75R15
Electric Plug Type: 7-Way Round
Hitch: 2 5/16" Ball

Spare parts for this lot can be found in lots:

0006 - Spare motor
0010 - Spare lithium ion battery
0209 - Spare power converter

Note: (2) Certificate of Title and (2) Transfer Form will be mailed 1-2 weeks following the last day of removal. The Bidder shall not bid on behalf of another individual; the Bidder/Purchaser/DMV Registrant must be the same. The Buyer is fully responsible for all aspects of the transfer of title, registration, sales tax, and fees due to DMV.
