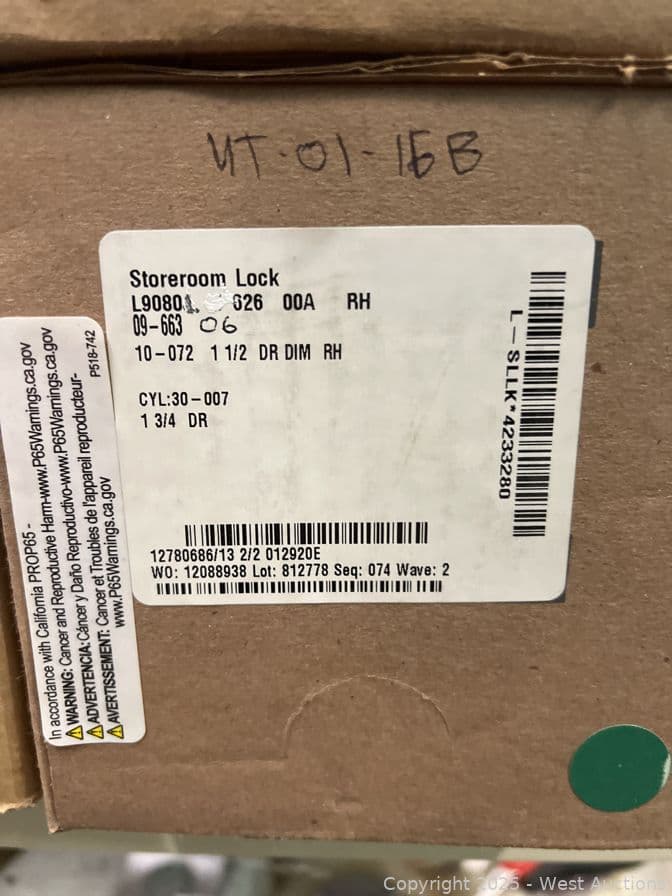

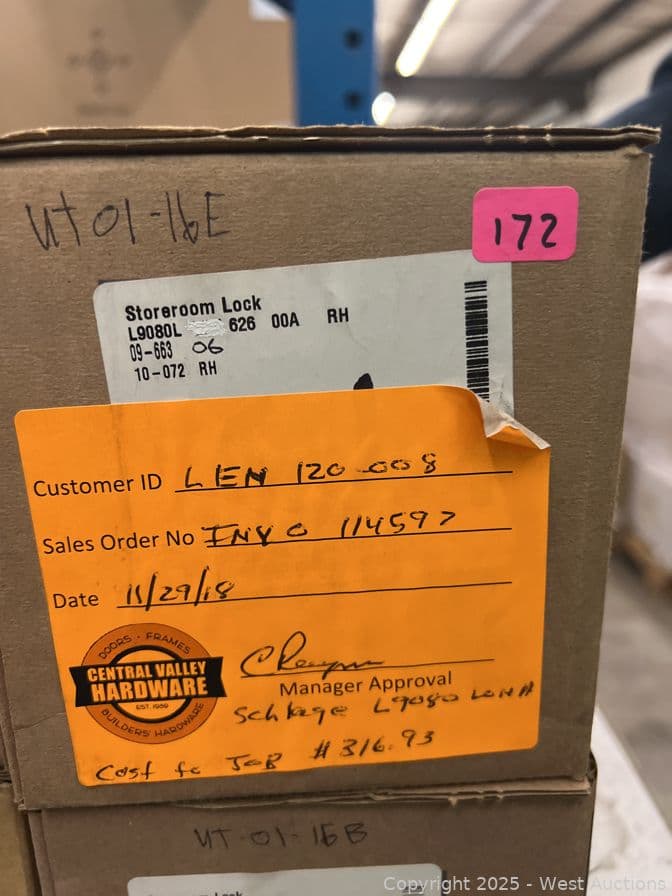

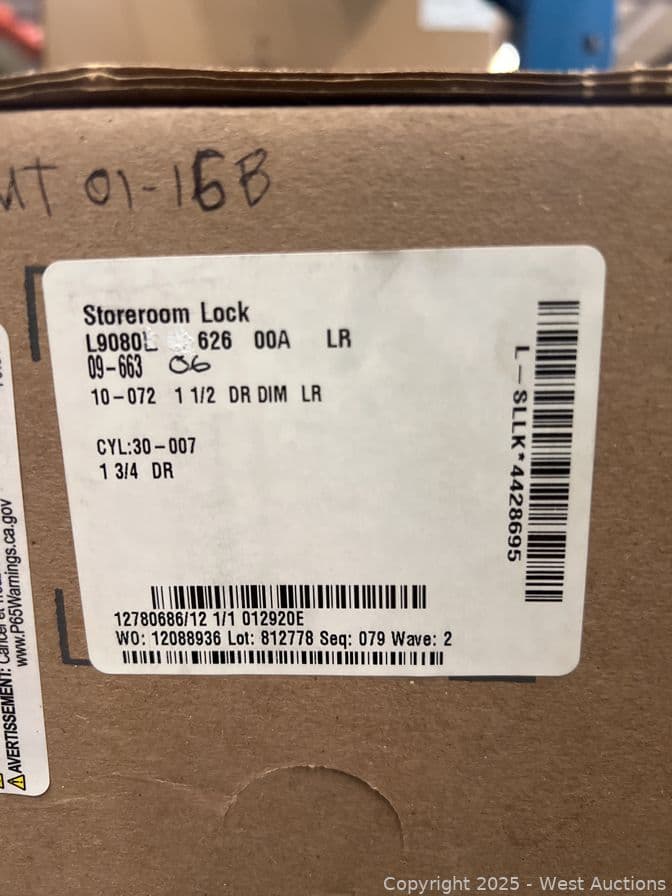

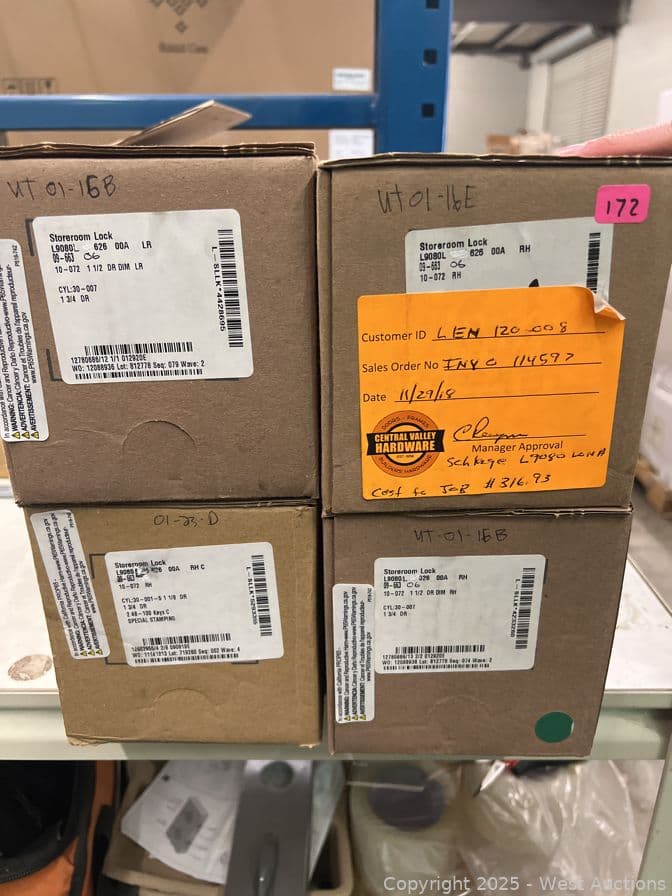

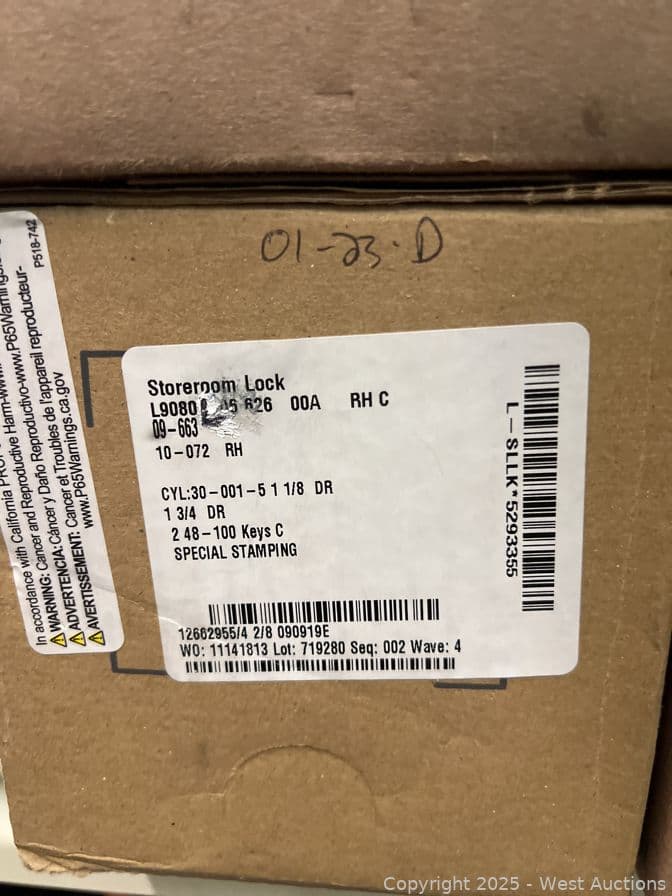

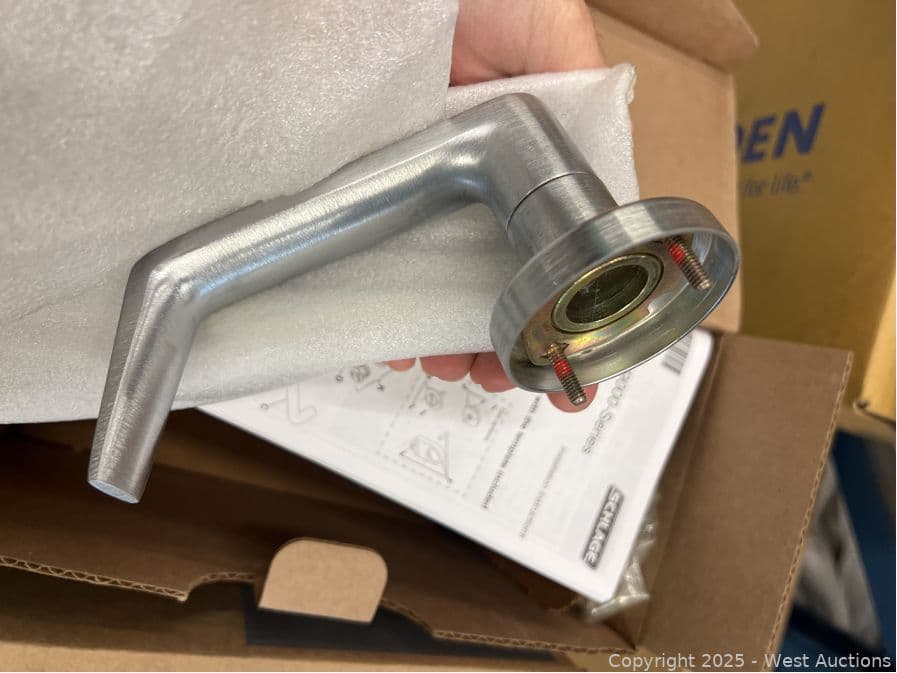

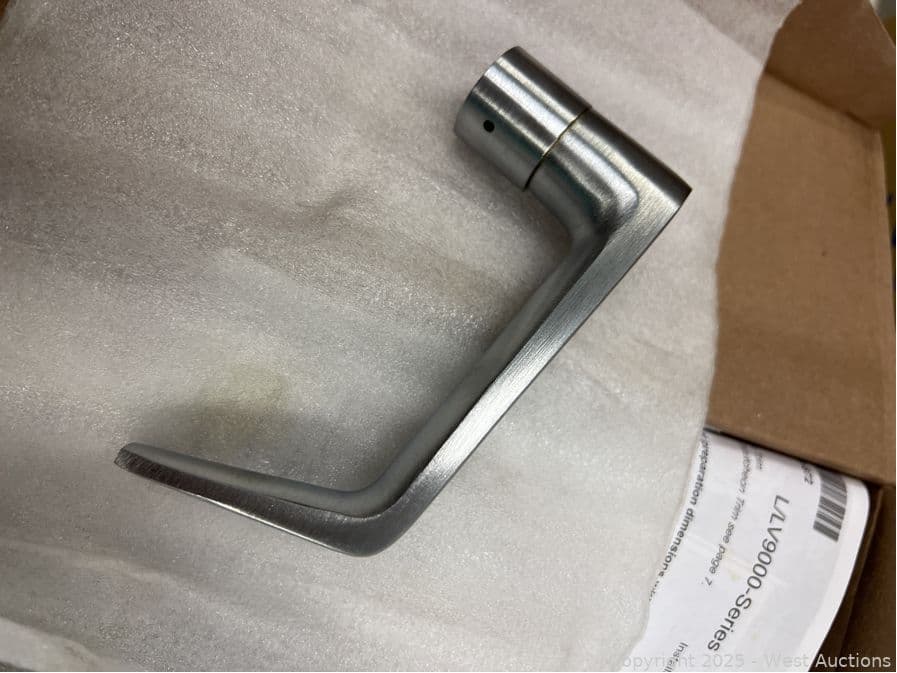

(4) Schlage L9080-01 Mortise Storeroom Lock, Field Reversible over $3000 in retail

Latchbolt retracted by key outside or by knob/lever inside. Outside knob/lever always inoperative. Auxiliary latch deadlocks latchbolt when door is closed. Inside lever is always free for immediate egress.
Lever Trim: 01A, 01L, 01N, 01B
Finish: 626 - Satin Chrome
Handing: L9000-Series lock bodies are field-reversible without disassembly.
Door Thickness: 1-3/4" (44 mm) standard. 1-3/8" (35 mm) to 2-1/2" (64 mm) optional (please call).
Backset: 2-3/4" (70 mm) only.
Armored Front: L9000-Series: 1-1/4" x 8" x 7/32" (32 mm x 203 mm x 6 mm) standard.

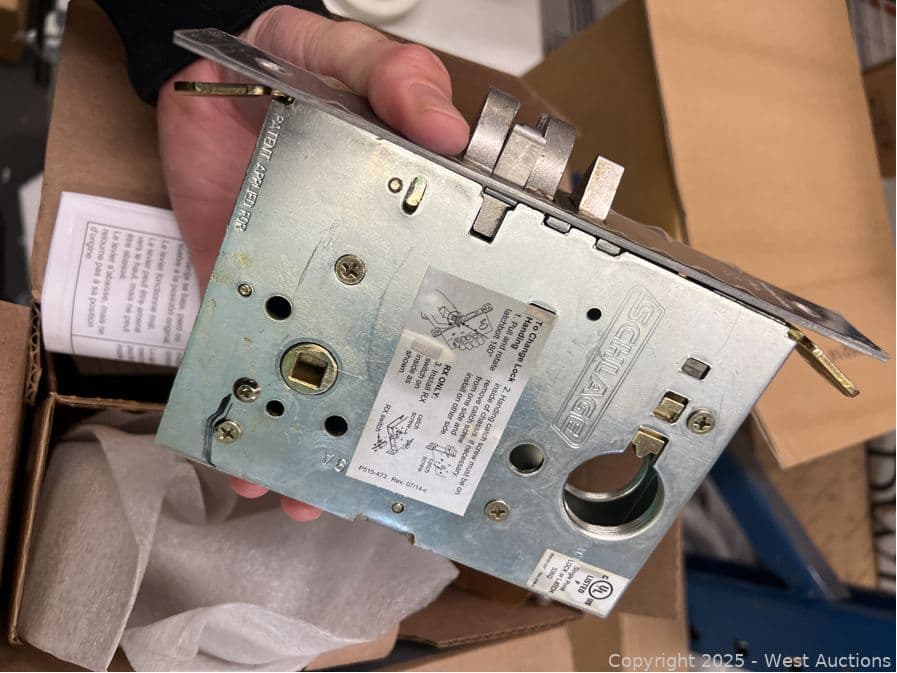

Case Size: L9000-Series: 4-7/16" x 6-1/16" x 1" (113 mm x 154 mm x 25 mm)
Spacing: Knob or lever to cylinder, 3-7/8" (98mm); knob or lever to thumbturn
hub, 2-11/16" (68mm).
Bolts: 1" (25mm) throw stainless steel deadbolt and 3/4" (19mm) throw
stainless steel latch with anti-friction tongue.
Exposed Trim: Levers: Forged brass or bronze and cast stainless steel. Designs
available to match ND-Series levers.
Escutcheons: L escutcheons are cold-forged brass or bronze and
stainless steel. N escutcheons are heavy wrought reinforced brass,
bronze and stainless steel.
Strike: L9000-Series: ANSI curved lip strike 1-1/4" x 4-7/8" (32 mm x 124 mm) x
13/16" (30 mm) lip to center with dust box standard.
Cylinder & Keys: 6-pin C keyway or Everest C123 keyway cylinder with two keys standard.
