Online Auction of Audio, Video, and Production in Modesto, CA|

Lot # 0120

(1) Crown Macro Tech 3600VZ 3600W Amplifier

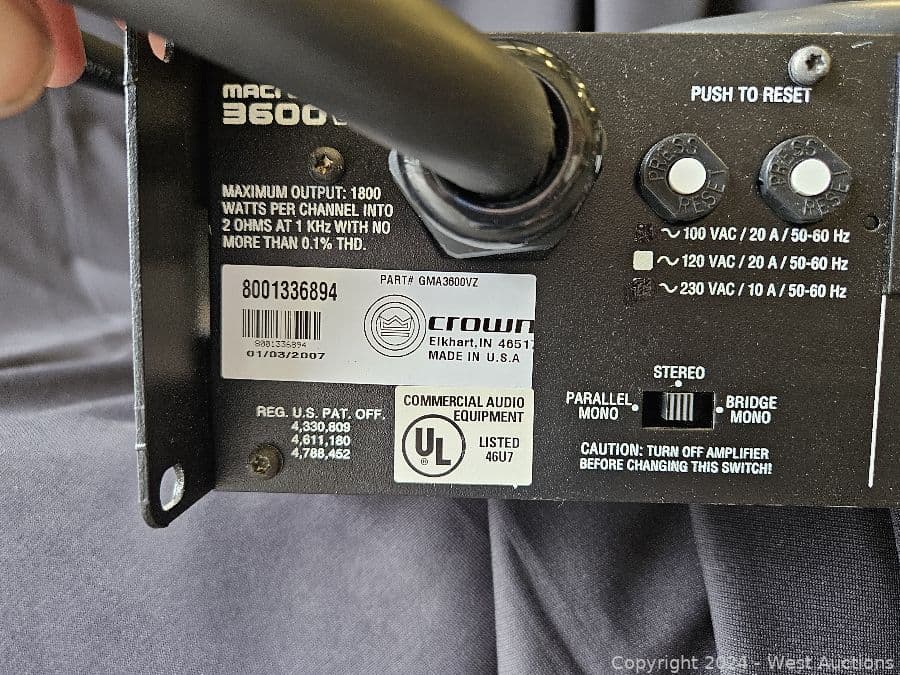

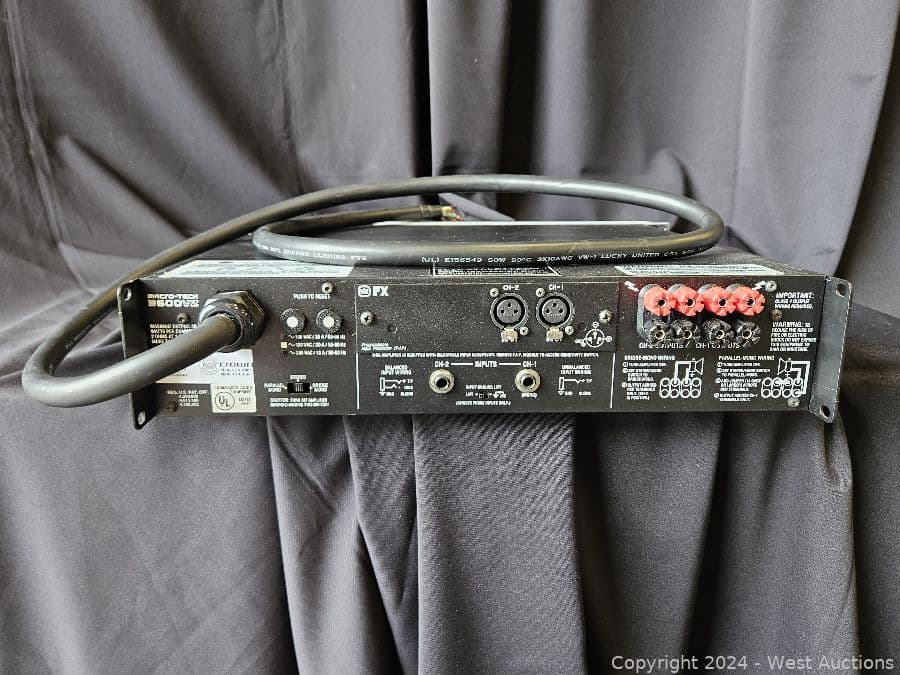

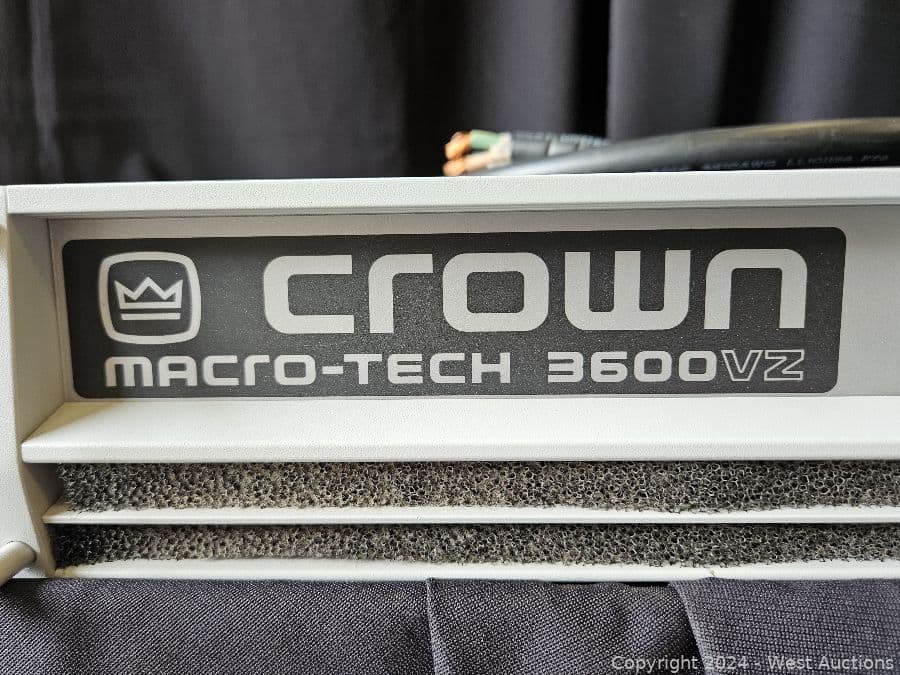

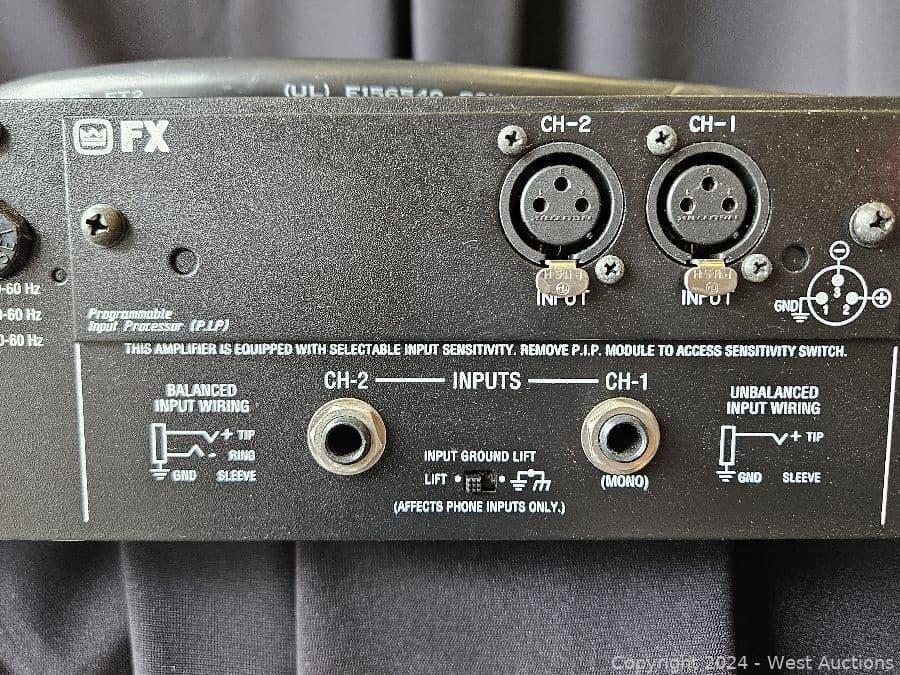

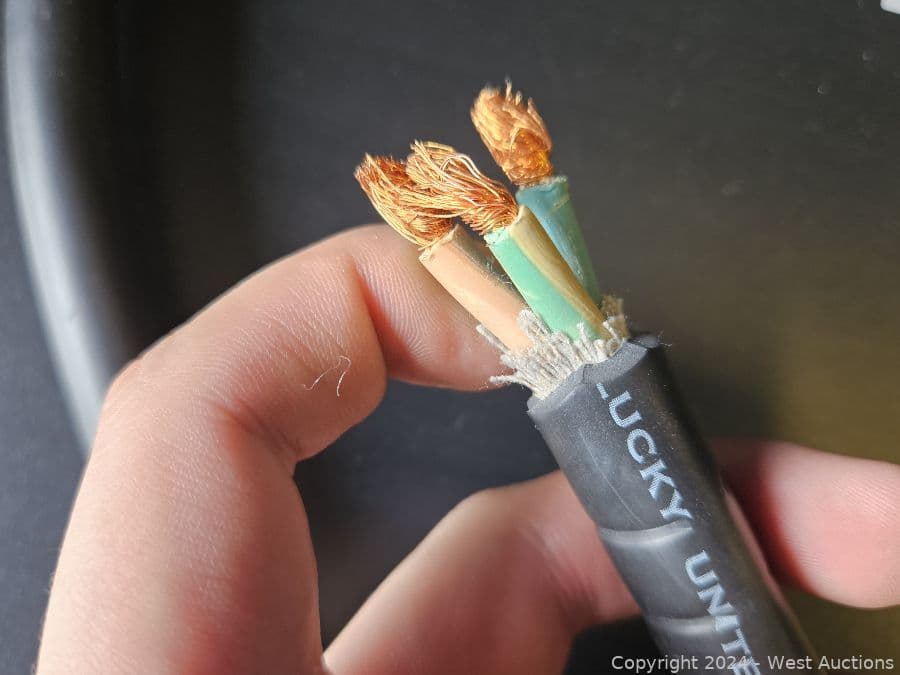

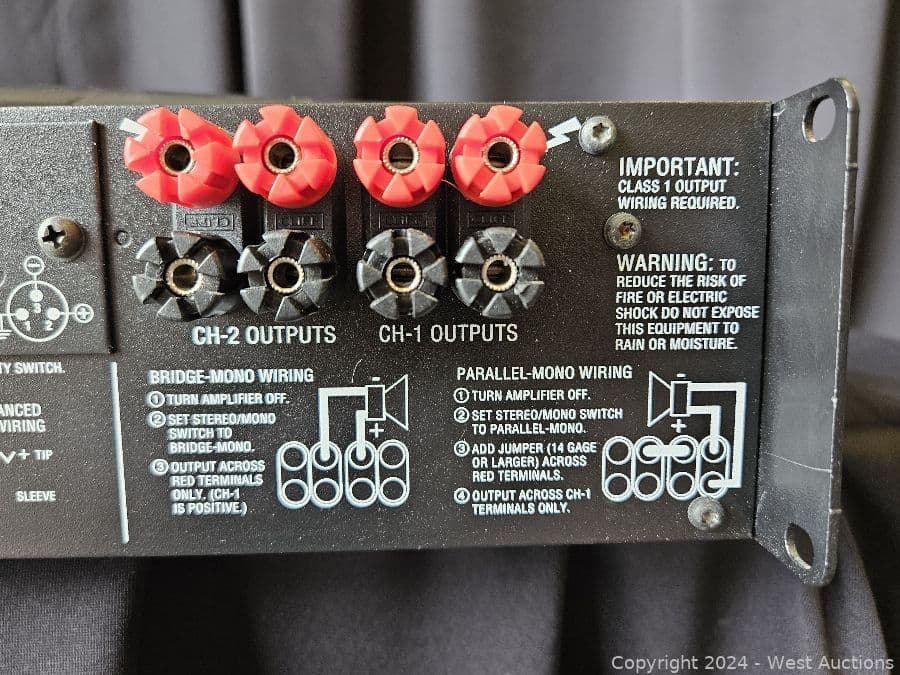

Photo Gallery Note: photos are representative of this item.

Features

Crown’s Grounded Bridge™ design delivers large voltage swings without using easily stressed output-transistor configurations like conventional amplifiers; the results are lower distortion and superior reliability
Patented ODEP ® (Output Device Emulation Protection) circuitry compensates for over-heating and overload to keep the amplifier working when others would fail
IOC ® (Input/Output Comparator) circuitry immediately alerts of any distortion exceeding 0.05%, providing dynamic proof of distortion-free performance
MA-3600VZ accepts only the PIP-Lite module when fitted with the IQ-PIP-USP2 Adapter
Patented Variable Impedance (VZ ® )power supplies for each channel provide excellent crosstalk characteristics and the best power matching to your load
Very low harmonic and intermodulation distortion result in the best dynamic transfer function in the industry
Full protection from shorted, open and mis-matched loads; general overheating; DC; high-frequency overloads; and internal fault conditions

Performance

Frequency Response: 0.1 dB from 20 Hz to 20 kHz at 1 watt.
Phase Response: 10 from 10 Hz to 20 kHz at 1 watt.
Signal-to-Noise Ratio: Greater than 105 dB below rated output (20 Hz to 20 kHz, A-weighted); 100 dB below rated output (20 Hz to 20 kHz, no weighting).
Harmonic Distortion (THD): At rated output, less than 0.05% from 20 Hz to 1 kHz increasing linearly to less than 0.1% at 20 kHz.
IM Distortion (IMD): Less than 0.05% from 368 milliwatts to full rated output.
Damping Factor: Greater than 1,000 from 10 Hz to 400 Hz.
Slew Rate: Greater than 30 volts per microsecond.
Voltage Gain: (At maximum output) 20:1 6% or 26 dB 0.25 dB at +26 dB gain setting, and 124.6:1 6% or 41.9 dB 1.0 dB at 0.775 volt sensitivity.
