(1) Crown Macro Tech 5002V2 2600W Amplifier

Removed from service in working condition.

Photo Gallery Note: photos are representative of this item.

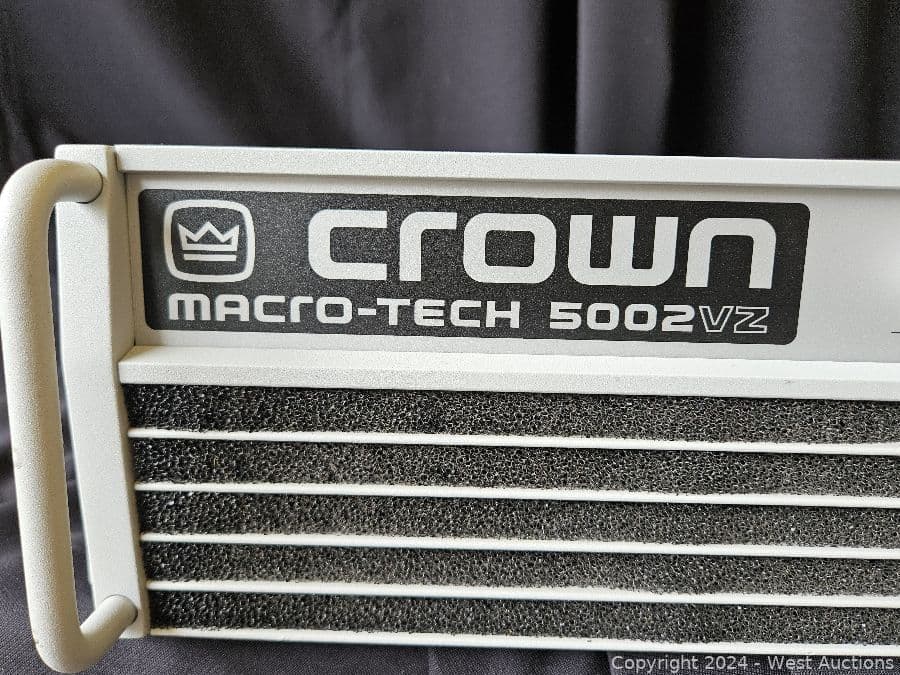

Crown Audio MA-5002VZ Overview

The Crown Audio MA-5002VZ Macro-Tech Amplifier offers sonic accuracy without compromise. The Macro-Tech series of amps are known for their solid low-end, crisp highs and precise mid-range. This high-power amp produces 1300W per channel @ 8 Ohms with Crown's Grounded Bridge for ultra-low distortion. Crown uses Patented Output Device Emulation Protection (ODEP) to keep your amp working under adverse conditions with PIPTM modules available.a

(1) Crown Macro Tech 5002V2 2600W Amplifier

Photo Gallery Note: photos are representative of this item.

The Crown Audio MA-5002VZ Macro-Tech Amplifier offers sonic accuracy without compromise. The Macro-Tech series of amps are known for their solid low-end, crisp highs and precise mid-range. This high-power amp produces 1300W per channel @ 8 Ohms with Crown's Grounded Bridge for ultra-low distortion. Crown uses Patented Output Device Emulation Protection (ODEP) to keep your amp working under adverse conditions with PIPTM modules available.
Each channel uses onboard compression for reducing input overload and clipping and Loudspeaker Offset Integration (LOI) for protecting your woofers and tweeters.
Crown uses Grounded Bridge circuitry for ultra-low distortion
The 5002VZ is PIP compatible (Programmable Input Processor accessories) for use-specific customization
Selectable bridge or mono modes
Level controls are detected for precision control
The onboard compressor prevents clipping while Loudspeaker Speaker Integration (LOI) protects woofers and tweeters
This amp is approved for use in THX installations

Specifications:

Power Rating	2,500W per channel at 2 Ohms 2,000W per channel at 4 Ohms 1,300W per channel at 8 Ohms 5,000W Bridge-Mono at 4 Ohms 4,000W Bridge-Mono at 8 Ohms
Damping Factor	> 1,000 from 10 Hz to 400 Hz
Input Sensitivity	132:1 ±12° or 42 dB ±1 dB gain at 0.775 volt sensitivity 71:1 ±12° or 37 dB ±1 dB gain at 1.4-volt sensitivity 20:1 ±3° or 26 dB ±0.25 dB gain at the maximum level setting
Input Impedance	Greater than 10 k ohms, balanced Greater than 5 k ohms, unbalanced
Frequency Response	±0.1 dB from 20 Hz to 20 kHz at 1 watt
Signal-to-Noise Ratio	> 105 dB A-weighted or 100 dB unweighted below-rated power, 20 Hz - 20 kHz
Total Harmonic Distortion (THD)	1 kHz rated power, 0.05% or less true THD
Input Connections	Two balanced 1/4" TRS (6.35-mm) phone jacks on the back panel 2 x balanced three-pin female XLR connectors on the factory- PIP-FXQ module

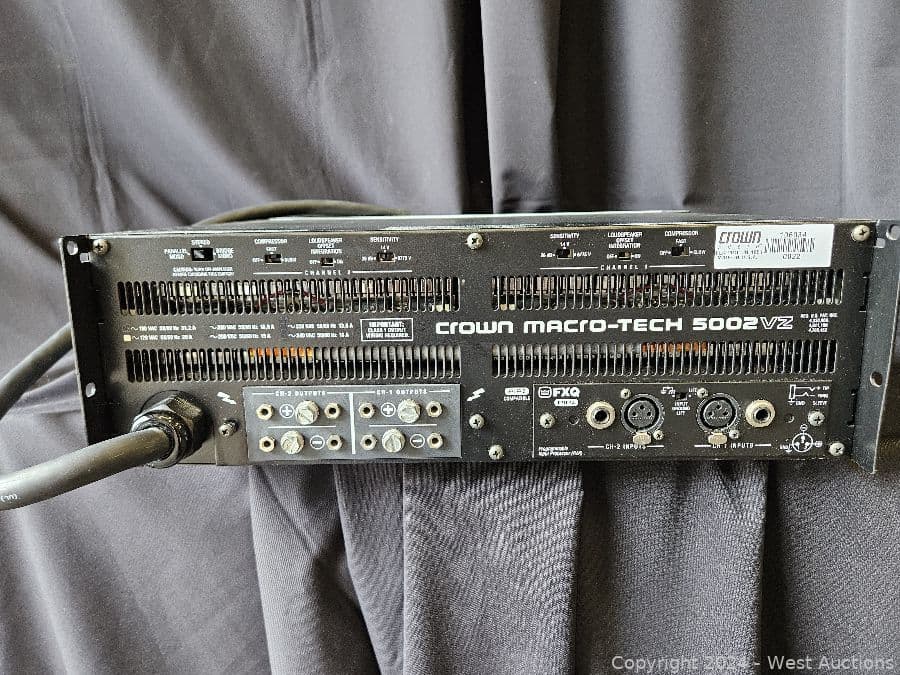

Output Connectors	A multi-function, high-current output block is provided. Crown output blocks include three pairs of connectors for each channel (a total of 12 connectors). This allows multiple loudspeakers to be easily connected to each channel. High-current screw terminals and color-coded binding posts.

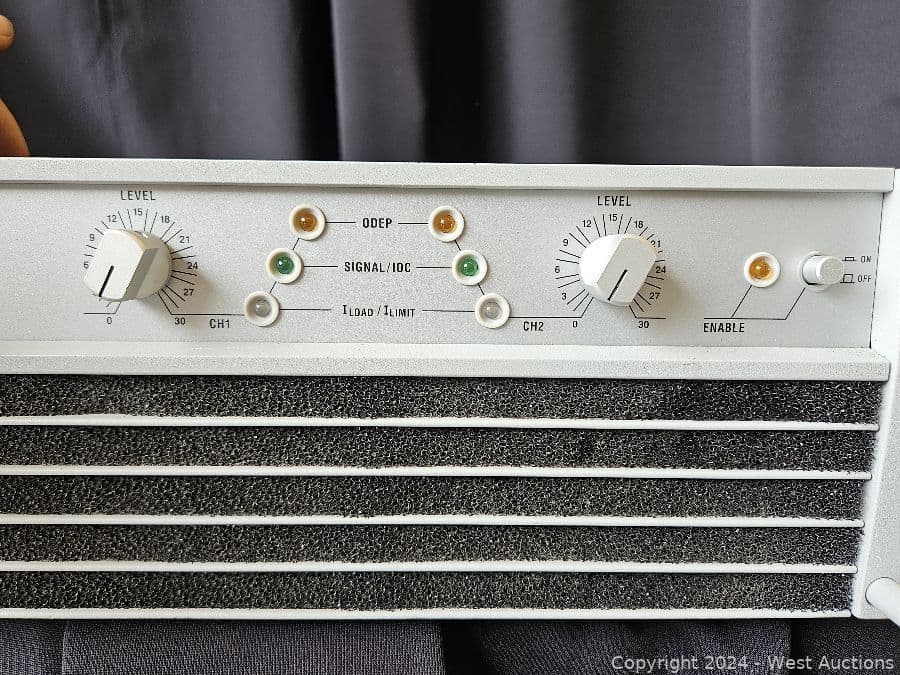

Controls Front Panel	Level x 2 Enable

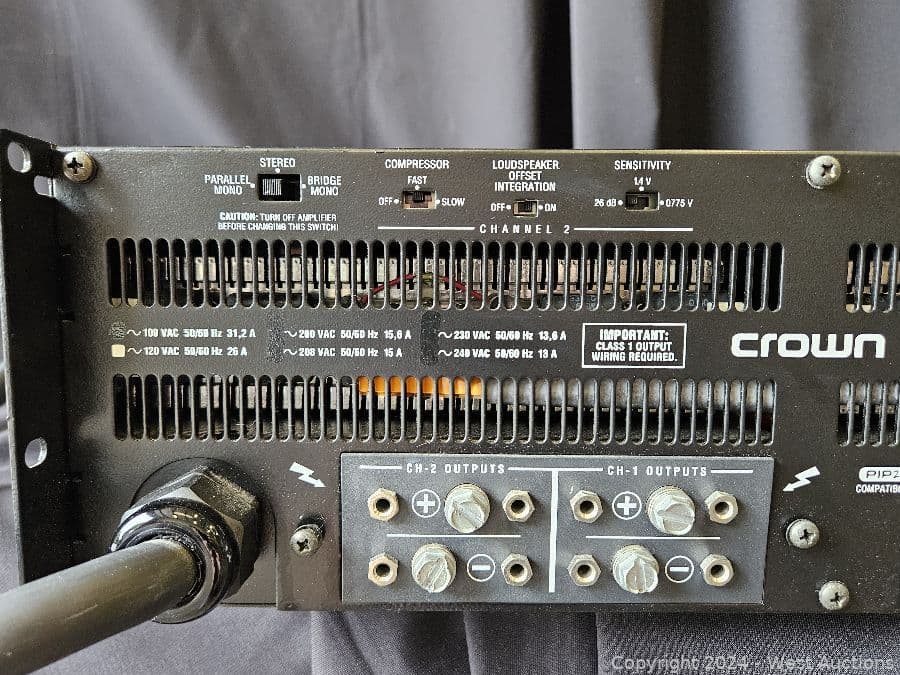

Controls (Rear)	Input Ground Lift Stereo x 2 Compressor x 2 LOI x 2 Sensitivity x 2
Indicators	Enable Signal ODEP Limit
Cooling	On-demand, proportional cooling, custom heat diffusers, and patented circuitry for rapid, uniform heat dissipation
Power Consumption	1881W @50% Duty Cycle
Power Requirements	100/120/200/208/230/240VAC @ 50-60Hz
Dimensions	19 x 5.25 x 15.875" (47.83 x 13.3 x 40.3cm)
Weight	77.6 lbs (35.2kg)

Each channel uses onboard compression for reducing input overload and clipping and Loudspeaker Offset Integration (LOI) for protecting your woofers and tweeters.

If you are looking for a heavy-duty amplifier, the MA-5002VZ is the obvious choice.

Crown uses Grounded Bridge circuitry for ultra-low distortion

The 5002VZ is PIP compatible (Programmable Input Processor accessories) for use-specific customization

Selectable bridge or mono modes

Level controls are detented for precision control

The onboard compressor prevents clipping while Loudspeaker Speaker Integration (LOI) protects woofers and tweeters

This amp is approved for use in THX installations

Crown Audio MA-5002VZ Specs

Power Rating	2,500W per channel at 2 Ohms 2,000W per channel at 4 Ohms 1,300W per channel at 8 Ohms 5,000W Bridge-Mono at 4 Ohms 4,000W Bridge-Mono at 8 Ohms
Damping Factor	> 1,000 from 10 Hz to 400 Hz
Input Sensitivity	132:1 ±12° or 42 dB ±1 dB gain at 0.775 volt sensitivity 71:1 ±12° or 37 dB ±1 dB gain at 1.4-volt sensitivity 20:1 ±3° or 26 dB ±0.25 dB gain at the maximum level setting
Input Impedance	Greater than 10 k ohms, balanced Greater than 5 k ohms, unbalanced
Frequency Response	±0.1 dB from 20 Hz to 20 kHz at 1 watt
Signal-to-Noise Ratio	> 105 dB A-weighted or 100 dB unweighted below-rated power, 20 Hz - 20 kHz
Total Harmonic Distortion (THD)	1 kHz rated power, 0.05% or less true THD
Input Connections	Two balanced 1/4" TRS (6.35-mm) phone jacks on the back panel 2 x balanced three-pin female XLR connectors on the factory- PIP-FXQ module
Output Connectors	A multi-function, high-current output block is provided. Crown output blocks include three pairs of connectors for each channel (a total of 12 connectors). This allows multiple loudspeakers to be easily connected to each channel. High-current screw terminals and color-coded binding posts.
Controls Front Panel	Level x 2 Enable
Controls (Rear)	Input Ground Lift Stereo x 2 Compressor x 2 LOI x 2 Sensitivity x 2
Indicators	Enable Signal ODEP Limit
Cooling	On-demand, proportional cooling, custom heat diffusers, and patented circuitry for rapid, uniform heat dissipation
Power Consumption	1881W @50% Duty Cycle
Power Requirements	100/120/200/208/230/240VAC @ 50-60Hz
Dimensions	19 x 5.25 x 15.875" (47.83 x 13.3 x 40.3cm)
Weight	77.6 lbs (35.2kg)
